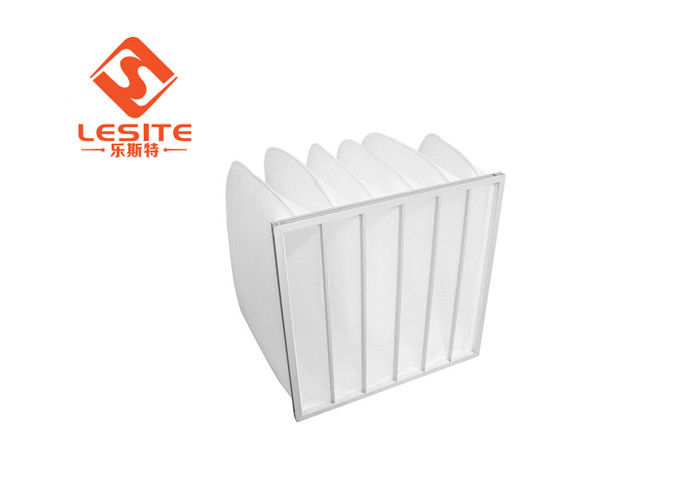

Filtros da cabine dos bolsos da pintura de 45%, coleção de poeira do filtro de 0,5 mícrons grande
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | LESITE |
| Certificação: | CE |
| Número do modelo: | Filtro de saco de alumínio |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | Negocie |
|---|---|
| Preço: | Negotiate |
| Detalhes da embalagem: | embalagem da exportação |
| Tempo de entrega: | 5-8 dias após o depósito |
| Termos de pagamento: | T/T, L/C |
| Habilidade da fonte: | ² de 5000 m pelo mês |
|
Informação detalhada |
|||
| Eficiência: | 99,97%, H13~H14 | Max Humidity: | 100% |
|---|---|---|---|
| Tamanho: | Personalizado | Material: | Fibra de vidro |
| max.humidity: | 100% | Espessura opcional: | Alumínio/SOLDADO: 21, 25, 46; Plástico: 25 |
| Destacar: | filtros da cabine dos bolsos da pintura de 45%,filtros da cabine dos bolsos da pintura de 0,5 mícrons |
||
Descrição de produto
Large Dust Collection Aluminum Bag Filter Efficiency 45%~95% 0.5μM
Material and operation
| media | non-woven |
| pocket type | sewing bag,ultrasonic bag |
| frame | aluminum/galvanized/stainless steel/wood frame |
| efficiency | 45%~95% 0.5μm |
| max.temperature | 80°C |
| max.humidity | 100% |
| optional aluminum | 17~50mm |
| optional plastic | 21mm |
Product features of the HVAC Industry Synthetic Fiber Medium F9 Bag Filter
1.The bag filter pocket filter adopt superfine synthetic filter,large dust holding capacity,efficiency stability in the life cycle of using.
2.Selection of optimized V-shaped bag structure,small resistance,long service life.
Application of the HVAC Industry Synthetic Fiber Medium F9 Bag Filter
It is ideal configuration products to widely use in ventilation system.
Technology parameters of the HVAC Industry Synthetic Fiber Medium F9 Bag Filter
Pocket filter is mainly used to filtrate the dust particles with the diameter of 0.5um and above. It has the advantages of more filtering area, high dust holding capacity, low resistance, and can be washed and used repeatedly, etc.
Advantages
7 pleats/feet, 40% higher than normal product With holding frame, very strong structure Customer can replace the material very easy by themselves, the holder and frame can be recycled Washable, Can be reused when necessary
| Frame | Aluminum alloy |
| Filter medium | Synthetic fiber |
| Max. temperature | 80°C |
| Max. humidity | 80%RH |
Application
It is extensively used in the ventilation systems of the central air conditionings and the purification of pharmacy industry, hospital, electron industry, and food industry, etc.
Additionally, they can also be used in the frontend filtration of the highefficiency air filters to reduce their loads and prolong their service lives.
